What Is LLM Tracing?

// In plain English

When your app calls an LLM, a lot happens before the answer arrives: a user message is received, a system prompt is assembled, a vector database is queried, a few documents are ranked, the full context is built, the model is called, the reply is post-processed, and the result is returned. LLM tracing is the practice of recording every one of those steps as a structured event, then linking the events together so you can replay the entire pipeline for any single request.

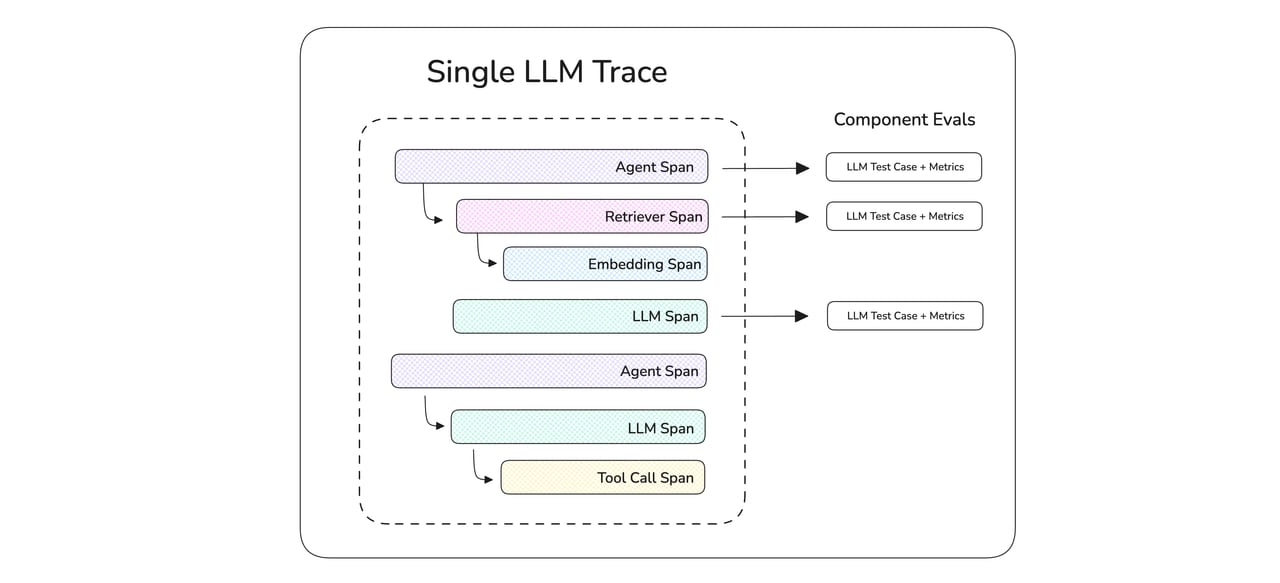

The unit of tracing is a span — a named, timed record of one discrete operation. Each span carries metadata: what it did, how long it took, what went in, what came out. Spans are connected by parent-child relationships that form a tree. The root of the tree is the user's request; leaves are individual operations like "query vector DB" or "call GPT-4o". The complete tree is the trace.

Think of it like a call stack, but persisted to a database you can query later. Where a call stack disappears when the function returns, a trace stays around so you can ask questions like: Which step cost the most tokens? Where did latency spike on that slow request? What retrieval results did the model actually see?

// Why it matters

A log line tells you that something happened. A trace tells you where inside a pipeline it happened and what the pipeline looked like around it. For an app that makes four to ten model and tool calls per user request — a RAG pipeline, an agent, a multi-step chain — that difference is the gap between debugging in minutes versus hours.

• Root-cause chains. A bad final answer can be caused by bad retrieval, a truncated context, a misconfigured system prompt, or a model error — all three steps back from the visible output. A trace shows you the exact branch where it went wrong.
• Latency attribution. Your API responds in 4 seconds. Is that the vector search, the LLM round-trip, or the post-processing? Collapsed spans with durations answer that question instantly.
• Cost per step. Token spend is invisible at the log level but explicit in a trace — each LLM span carries input and output token counts, so you can see which part of your pipeline burns the most money.
• Multi-service debugging. A real AI app is often several services: a Go API, a Python RAG service, a separate tool-execution worker. A distributed trace follows the request across all of them under one trace ID, even across async boundaries.
• Regression comparison. Tracing platforms let you select two traces for the same query — one from last week, one from today — and diff them side by side. This is how you catch silent model-behavior changes after a provider update.

// How it works

Every trace starts with a root span created when your app receives a user request. As execution flows through your code, child spans are opened and closed around each operation. When a child span ends it reports its duration and attributes to the tracing backend; the parent span's record shows the child nested inside it. The result is a tree that mirrors how your code actually ran.

Span anatomy

Every span records a standard envelope of fields regardless of what kind of operation it represents.

Span kinds

The OpenInference specification (published by Arize, Apache 2.0) defines a taxonomy of openinference.span.kind values that every major LLM tracing tool now uses. Each kind unlocks specialized attribute namespaces and AI-aware UI rendering.

• CHAIN — an orchestration step that coordinates other spans; the root span is usually a CHAIN
• LLM — a single model inference call; carries llm.model_name, llm.input_messages, llm.output_messages, and token counts
• RETRIEVER — a document retrieval operation; carries the query and the ranked list of retrieved documents
• EMBEDDING — embedding generation; carries input text and the resulting vector dimensions
• TOOL — an external tool or function call made by the agent; carries tool name and the JSON arguments
• RERANKER — a cross-encoder re-scoring step; carries the input list and the reranked output list
• AGENT — an autonomous decision-making loop; its children are the individual CHAIN/TOOL/LLM iterations

Context propagation

For spans to form a tree, each child must know its parent's span_id. In a single process this is usually handled automatically via thread-local or async-context storage — the tracer injects the current span into context so any nested call can pick it up. For distributed traces (spans crossing HTTP or queue boundaries), the trace ID and parent span ID are forwarded as HTTP headers (the standard W3C traceparent header) or message metadata, letting the downstream service attach its spans to the same tree even though it runs in a separate process or language runtime.

// Instrumentation in practice

There are three levels of instrumentation effort, and you usually move through them in order as your app grows.

Level 1 — Auto-instrumentation

The fastest path: add one import and your framework is traced. Langfuse, LangSmith, and Phoenix all ship auto-instrumentation packages for popular SDKs (OpenAI, Anthropic, LangChain, LlamaIndex). They monkey-patch the SDK client so every call emits spans automatically, with no changes to your business logic.

# Langfuse auto-instrumentation for OpenAI
import os
os.environ["LANGFUSE_PUBLIC_KEY"] = "pk-..."
os.environ["LANGFUSE_SECRET_KEY"] = "sk-..."

from langfuse.openai import openai   # drop-in replacement

response = openai.chat.completions.create(
    model="gpt-4o",
    messages=[{"role": "user", "content": "Explain transformers"}],
)
# A trace with an LLM span is sent to Langfuse automatically.

Level 2 — Decorator / context-manager API

Auto-instrumentation captures model calls but doesn't know about your pipeline steps. Decorate your functions with @observe() (Langfuse) or @traceable (LangSmith) to create custom CHAIN spans that wrap the auto-instrumented model spans inside them. The decorator handles span open/close and parent linking automatically.

from langfuse.decorators import observe, langfuse_context

@observe()              # creates a CHAIN span for the whole RAG pipeline
def answer_question(user_query: str) -> str:
    docs = retrieve_docs(user_query)   # will nest inside this span
    answer = call_llm(docs, user_query)
    langfuse_context.update_current_observation(
        metadata={"retrieved_doc_count": len(docs)}
    )
    return answer

@observe(name="retrieve_documents")   # CHAIN span named explicitly
def retrieve_docs(query: str) -> list[str]:
    # ... vector DB call ...
    return docs

@observe(name="llm_call")
def call_llm(docs: list[str], query: str) -> str:
    # ... openai.chat.completions.create() ...
    return response.choices[0].message.content

Level 3 — Manual tracing

For dynamic pipelines where you don't know the structure at import time — agent loops that iterate until done, branching tool-use chains — you open and close spans manually. This gives you full control over names, attributes, and the parent-child links.

from langfuse import Langfuse

lf = Langfuse()

trace = lf.trace(name="agent_run", user_id="u_123")

for step_n, tool_name in enumerate(agent_steps):
    span = trace.span(
        name=f"tool_call_{step_n}",
        input={"tool": tool_name, "args": tool_args},
    )
    result = execute_tool(tool_name, tool_args)
    span.end(output={"result": result})

trace.update(output={"final_answer": final_answer})

// Langfuse, LangSmith, and OpenTelemetry compared

Three names come up constantly when teams choose a tracing platform. They're not interchangeable — they sit at different layers of the stack.

OpenTelemetry (OTel) is the lowest layer — an open standard for how spans are shaped and exported. It now ships GenAI semantic conventions: agreed attribute names for LLM spans (gen_ai.system, gen_ai.request.model, gen_ai.usage.input_tokens, and so on). Writing OTel-compliant spans lets you point traces at any compatible backend — Langfuse, Jaeger, Datadog, Phoenix — without changing instrumentation code.

Langfuse consumes OTel traces as one of its input protocols, meaning you can instrument with the standard OTel Python SDK and ship to Langfuse. This is the most portable setup: your instrumentation code has zero Langfuse imports; only the export endpoint is Langfuse-specific.

LangSmith uses its own RunTree data model (each step is a run, not a span) with native parent-child linking through the RunTree API. It's the right choice if your app is built on LangChain or LangGraph and you want the deepest possible native integration. For non-LangChain apps the instrumentation effort is higher.

// Going deeper

Once traces are flowing, the next layer is using them to answer harder questions — ones that require understanding the structure of spans, not just individual fields.

Tracing agentic loops

An AI agent that calls tools in a loop can produce a trace tree many levels deep with a variable number of children — you don't know at request time how many iterations the agent will take. Platforms like Langfuse handle this by keeping the trace open until you explicitly close it, letting you append child spans as the loop iterates. In the UI, agent traces render as a timeline where each iteration's spans are grouped under the same root, and you can see token spend and latency per iteration.

Parallel spans

Multi-agent systems and multi-agent frameworks often fan out to several sub-agents in parallel. Each parallel branch produces its own child spans under the same parent. A tracing platform renders them as horizontal bars on a Gantt-style timeline, making it immediately visible whether the parallel branches actually ran concurrently or were serialized by a bottleneck.

Sampling strategies

High-traffic apps cannot afford to store every trace. The right strategy is head-based sampling (decide at the root span whether to record) combined with tail-based sampling that keeps 100% of error traces and traces exceeding a latency threshold, and samples the rest. Never let a random sampler drop error and slow traces — those are the exact cases you need most.

Attaching scores to traces

A trace records what happened; a score records whether it was good. Platforms like Langfuse and LangSmith let you attach numeric or categorical scores to a trace after the fact — from a human reviewer, a heuristic checker, or an LLM-as-a-judge. Once scores are attached you can query "show me all traces that scored below 0.5 on faithfulness" and replay exactly what went wrong. This is the bridge between passive tracing and active quality control, and it feeds LLM evals pipelines.

Privacy and PII in traces

LLM spans contain prompts, and prompts often contain user data. Storing full prompts verbatim is a compliance risk. Options: mask PII before the span attribute is set (cheapest), use a server-side redaction filter in your OTel collector pipeline (adds latency), or hash user-identifying values while keeping the structure. Whatever you choose, make the decision before you flip on tracing — retrofitting redaction after data is already in the backend is much harder.
