How Do You Evaluate a RAG System? The Metrics That Matter

// In plain English

Evaluating a RAG system means measuring how good its answers are — not by reading a few and nodding, but with repeatable numbers you can compare run to run. A RAG system (retrieval-augmented generation) works in two steps: it retrieves relevant chunks of your documents, then a language model generates an answer from those chunks. Evaluation asks two separate questions: did it find the right material, and did it write a faithful answer from it?

Think of it like grading a student's open-book essay. There are two ways to fail. They could grab the wrong page of the textbook — bad retrieval. Or they could have the right page open and still write something the page never says — bad generation. A single grade of "7 out of 10" hides which mistake happened. RAG evaluation splits the grade so you know whether to fix the search or fix the prompt.

That split is the whole reason RAG needs its own evaluation playbook. A plain chatbot has one thing to score: the answer. A RAG pipeline has a retriever and a generator, wired in sequence, and a great generator can't rescue garbage retrieval. If you only look at the final answer, every failure looks the same and you're left guessing what to change.

// Why it matters

RAG has a lot of knobs, and they all interact. You can change your chunking strategy, your embedding model, how many chunks you retrieve, whether you rerank, and the generation prompt. Tweak any one and the others shift. Without measurement you're flying blind: you "improve" the chunk size, ship it, and quietly tank answer quality for a whole class of questions you never tested.

The deeper problem is that RAG fails silently and confidently. When retrieval misses, the model doesn't say "I couldn't find anything." It fills the gap with a fluent, authoritative-sounding answer built on nothing — a hallucination dressed as a citation. To a casual reader the bad answer looks exactly like the good one. Evaluation is the only thing that reliably tells them apart at scale.

Who should care

• Anyone shipping a RAG feature — internal Q&A, a docs assistant, customer support search. You cannot tune what you cannot measure.
• Teams choosing components — is a reranker worth the latency? Is the cheaper embedding model good enough? A metric answers; a vibe doesn't.
• People debugging "it gives wrong answers" — evaluation localises the bug to retrieval or generation, which is half the fix.
• Production owners — your documents change, the model behind your API updates, and answer quality drifts. Evals are the alarm.

What did RAG evaluation replace? The same thing all evals replace: hope. The old loop was "ask it three questions, the answers look smart, ship." That survives a demo and collapses the first time a user asks the question you never tried. Evaluation turns gut feel into a number you can defend.

// How it works

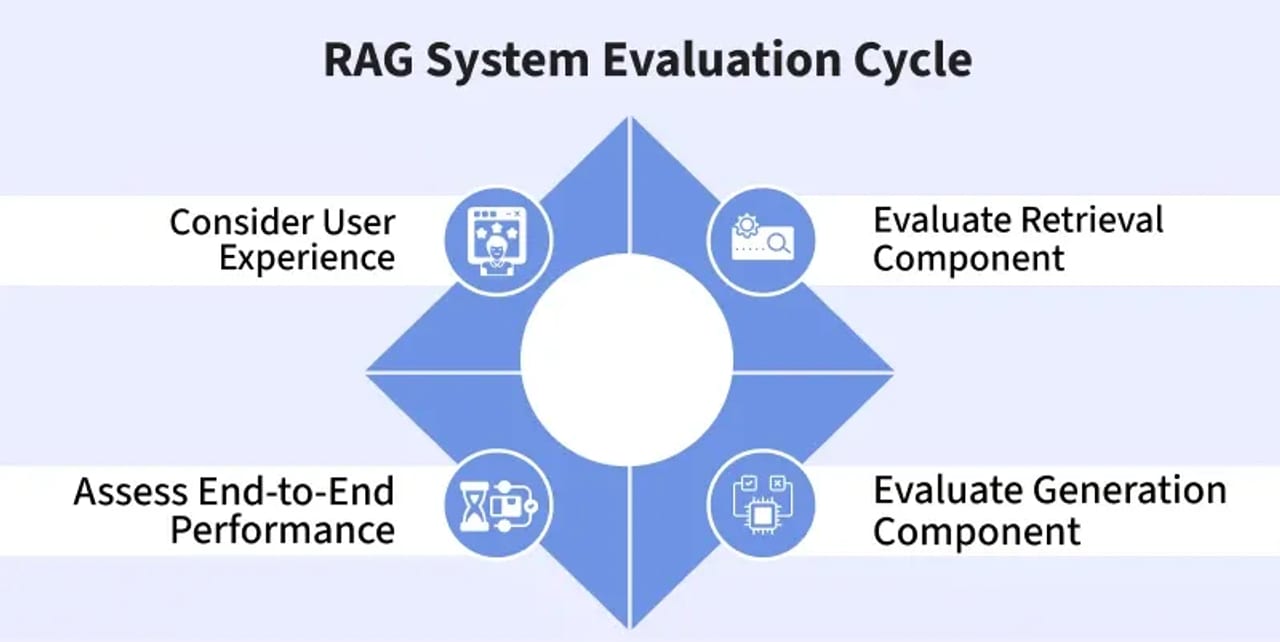

Every RAG evaluation scores the two stages separately, then optionally the end-to-end result. You feed in a question, watch which chunks the retriever pulls and what the model writes, and grade each stage against what should have happened. The data flows like this:

The retrieval metrics ask: out of all the chunks we pulled, how many were actually relevant, and did we get the ones we needed? These are classic information-retrieval measures, computed against a set of chunks you've labelled as the "right" ones for each question.

Precision and recall pull against each other. Retrieve 20 chunks and you'll probably catch the right one (high recall) but drown it in noise (low precision). Retrieve 2 and the opposite happens. Tuning top_k and adding a reranker is mostly a fight to push both up at once.

The generation metrics ask whether the answer is any good given the chunks it was handed. The headline one is faithfulness (also called groundedness): does every claim in the answer trace back to the retrieved context, or did the model invent something? Then answer relevance: did it actually address the question, or wander? And correctness: does it match the known true answer, when you have one?

Notice the payoff: if recall is high but faithfulness is low, the right context was there and the model botched it — fix the prompt, not the search. If recall is low, no prompt on earth will save you — fix retrieval first. One split metric tells you which half of the system to touch.

// Building your evaluation set

Every metric above needs a dataset to score against. For RAG, each test case is richer than a normal eval row. You need the question, and ideally the ground-truth answer and the ids of the chunks that should have been retrieved. That last field is what lets you compute context recall without a human in the loop.

[
  {
    "question": "How many days of paid leave do new employees get?",
    "ground_truth": "New employees accrue 15 days of paid leave per year.",
    "relevant_chunk_ids": ["hr-policy-12", "hr-policy-13"]
  },
  {
    "question": "Can I expense a home-office monitor?",
    "ground_truth": "Yes, up to the annual equipment stipend limit.",
    "relevant_chunk_ids": ["expenses-04"]
  }
]

Labelling relevant_chunk_ids is the tedious part, but it's what unlocks automatic retrieval scoring. If you skip it, you can still score the answer (faithfulness, relevance) using model-graded checks — you just lose the clean precision/recall numbers on the retriever. Many teams start answer-only and add chunk labels later.

// Your first RAG eval in code

You don't need a framework to start — a retrieval eval is just set math. Here's a complete one that scores context precision, recall, and hit rate for a retriever, using the labelled set above. No LLM calls at all; it's pure comparison of chunk ids.

import json

with open("rag_eval_set.json") as f:
    DATASET = json.load(f)

def retrieve(question: str, top_k: int = 4) -> list[str]:
    """Your real retriever goes here. Returns chunk ids, best-first.
    Stubbed so the example runs standalone."""
    return ["hr-policy-12", "misc-99", "hr-policy-13", "misc-04"]

precisions, recalls, hits = [], [], []
for case in DATASET:
    got = retrieve(case["question"])
    relevant = set(case["relevant_chunk_ids"])
    found = [c for c in got if c in relevant]

    precision = len(found) / len(got) if got else 0.0
    recall = len(found) / len(relevant) if relevant else 0.0
    hit = 1.0 if found else 0.0

    precisions.append(precision)
    recalls.append(recall)
    hits.append(hit)
    if not found:
        print(f"MISS  {case['question']!r} retrieved {got}")

n = len(DATASET)
print(f"Context precision: {sum(precisions)/n:.1%}")
print(f"Context recall:    {sum(recalls)/n:.1%}")
print(f"Hit rate:          {sum(hits)/n:.1%}")

Run it, read the MISS lines, and you immediately see which questions retrieval is whiffing on. Now change your top_k or swap the embedding model, re-run, and the three percentages tell you the truth instead of a hunch.

Scoring the answer is harder, because "is this faithful?" has no regex. That's where LLM-as-a-judge comes in: you ask a separate model to grade the answer against the retrieved context.

from anthropic import Anthropic

client = Anthropic(api_key="sk-...")  # placeholder

RUBRIC = (
    "You are grading a RAG answer for FAITHFULNESS only.\n"
    "Score 1 if EVERY claim in the answer is supported by the context.\n"
    "Score 0 if the answer states anything the context does not support.\n"
    "Reply with only the digit 1 or 0."
)

def faithfulness(context: str, answer: str) -> int:
    msg = client.messages.create(
        model="claude-sonnet-4-5",
        max_tokens=2,
        messages=[{
            "role": "user",
            "content": f"{RUBRIC}\n\nCONTEXT:\n{context}\n\nANSWER:\n{answer}",
        }],
    )
    return int(msg.content[0].text.strip())

# faithfulness("...retrieved chunks...", "...model's answer...") -> 1 or 0

// The tool landscape

Once you outgrow scripts, RAG-specific frameworks ship the metrics above pre-built, so you don't re-derive context recall by hand. The names you'll meet:

Most of these wrap the same idea: an LLM judge scoring faithfulness and relevance, plus set math for retrieval. The framework matters far less than having a labelled set and running it on every change. Start with a 50-line script, graduate to a tool when you need shared datasets, dashboards, or observability on live traffic.

// Going deeper

Once a basic RAG eval is running, the hard questions show up — the ones that separate a toy score from a number teams actually bet on.

The component-vs-end-to-end split

Scoring retrieval and generation separately is great for debugging but can mislead on overall quality. A pipeline can post decent component scores yet still produce bad answers because of how the pieces interact — a chunk is technically "relevant" but cut mid-sentence, so the model gets half a fact. Mature suites keep both: component metrics to localise bugs, and an end-to-end "is the final answer correct and useful?" score to judge the product the user actually sees.

Reference-free evaluation

Writing ground-truth answers and chunk labels is expensive, so a lot of RAG metrics are designed to need no reference. Faithfulness compares the answer to the retrieved context, not to a gold answer — so you can run it on live production traffic where no correct answer exists. This is the bridge from offline regression suites to online monitoring: the same faithfulness check guards both.

Evaluating agentic and multi-hop RAG

When the LLM decides what and when to search — agentic RAG — single-shot metrics break down. The system might run three searches, refine the query, and synthesise across hops. Now you have to score the trajectory: were the sub-queries sensible, did it stop at the right time, did it avoid burning tokens on dead-end searches? This is an active frontier with far fewer settled practices than single-turn RAG, and it borrows heavily from agent evaluation.

Noise, contamination, and overfitting

Three quiet traps. Judge noise: LLM-graded scores wobble, so a faithfulness move from 88% to 89% may be sampling, not progress — use enough cases that the difference is real. Contamination: if your eval questions and documents leaked into a model's training data, high scores are memorisation, not skill. Overfitting: tune endlessly against the same 30 cases and you'll ace those 30 while quietly degrading everything else. Keep a held-out set you touch rarely, and refresh cases from live traffic so the eval can't go stale.
